The Ten-Minute Plumbing Fix
To quote Atlanta rap royalty T.I. from his classic track: "Stacks on deck, Patrón on ice, and we can pop bottles all night... baby you can have whatever you like." Well, when you're standing barefoot on cold bathroom tile staring down a jammed, corroded brass click-clack cartridge, we ain't poppin' bottles—we're poppin' bathtub drains. And unlike bottle service at the club, you can only click whatever you like if your caliper measurements actually match the thread pitch!
A sticking, leaking, or broken pop-up bathtub drain is one of the most frustrating minor household issues. Over time, the internal spring mechanism—known as a click-clack pop-up bolt—gets clogged with hair, coated in hard water scale, or simply breaks.
Instead of calling a plumber (who will easily charge $150+) or trying to tear out the entire drain shoe and assembly from under the tub, you can replace just the internal cartridge. It is a simple, screw-in brass cylinder that sits directly inside the drain basket.
The trick is getting the exact replacement size. While online pictures look identical, a variance of a single millimeter will render the part useless. By using a pair of digital calipers and following this guide, you will get the correct part ordered and installed on the first try.
CRITICAL UPDATE: Gemini Got It Wrong!
Rick's Log (June 2026): You know the old woodworker's proverb: "Measure twice, cut once." Well, in the lawless land of plumbing replacement parts, apparently you can measure 5 times and still have to order twice! Even with precision digital calipers, Gemini and I still managed to get led down the wrong drain path.
Why is it so easy to get wrong? Because the measurements themselves are 100% correct—your calipers will read exactly 8.0mm and 16.0mm. But because these brass cartridges look almost symmetrical in photos, and because "top vs. bottom" naming conventions are easily swapped (depending on whether you are describing the cartridge body layout or the tub's perspective), it is incredibly easy for an AI or search engine to default to the standard spec (M16 Top / M8 Bottom) when your tub uses the exact opposite: M8 Top & M16 Bottom.
If the thread inside your stopper cap is the narrow one (8mm) and the drain basket hole is the wide one (16mm), you need the reversed M8/M16 model. It was easy to find once I typed those exact words (m8 m16 tub bolt) into Amazon. It's always about putting the right words into the search!
Required Shopping List
Interactive Step Tracker
Check off steps as you proceed to monitor your progress in real-time.
Quick Reference: Sizing Specs
| Feature | Target Specification for Standard Tubs |
|---|---|
| Top Thread (Cap Mount) | M16 (~16mm / Measures ~15.86mm) |
| Bottom Thread (Basket Anchor) | M8 (~8mm) |
| Closed Body Height | 28mm to 35mm (Avoid the 55mm version!) |
Replacement Procedure
Removing the Old Drain Plug
Before you can measure or order anything, you need to extract the existing assembly from the tub drain basket:
- Set to "Open": If the mechanism still clicks at all, make sure the stopper is popped up in the open position.
- Unscrew the Decorative Cap: Grab the outer edges of the decorative metal cap. Turn it counterclockwise. In standard setups, the cap will unscrew cleanly from the wide top threads of the internal brass bolt.
- Extract the Brass Mechanism: Look down into the drain basket. The top of the brass cartridge will be sticking out. Use a pair of pliers (or a flathead screwdriver/wrench if your bolt features flat notch sides) to grip the brass body and turn it counterclockwise until it completely unscrews from the bottom of the drain basket.
GOTCHA #1: Watch Out for the "Spinner"!
Sometimes, turning the decorative cap just spins the entire internal cartridge without unscrewing the cap. If this happens, wedge a flathead screwdriver or putty knife underneath the rubber seal to gently hold the brass body stable while you twist the top cap off.
GOTCHA #2: Don't Drop the Screw!
Many click-clack cartridges have a tiny brass guide screw on the side. If the old mechanism is highly corroded or brittle, this screw can snap off or fall out during removal. Work slowly to prevent metal fragments from dropping down into your drain pipe.
Measuring the Part (The "Triple-Check" Method)
Plumbing parts look identical online, but a difference of a single millimeter will prevent the new part from fitting. Grab your digital calipers and take these three critical measurements:

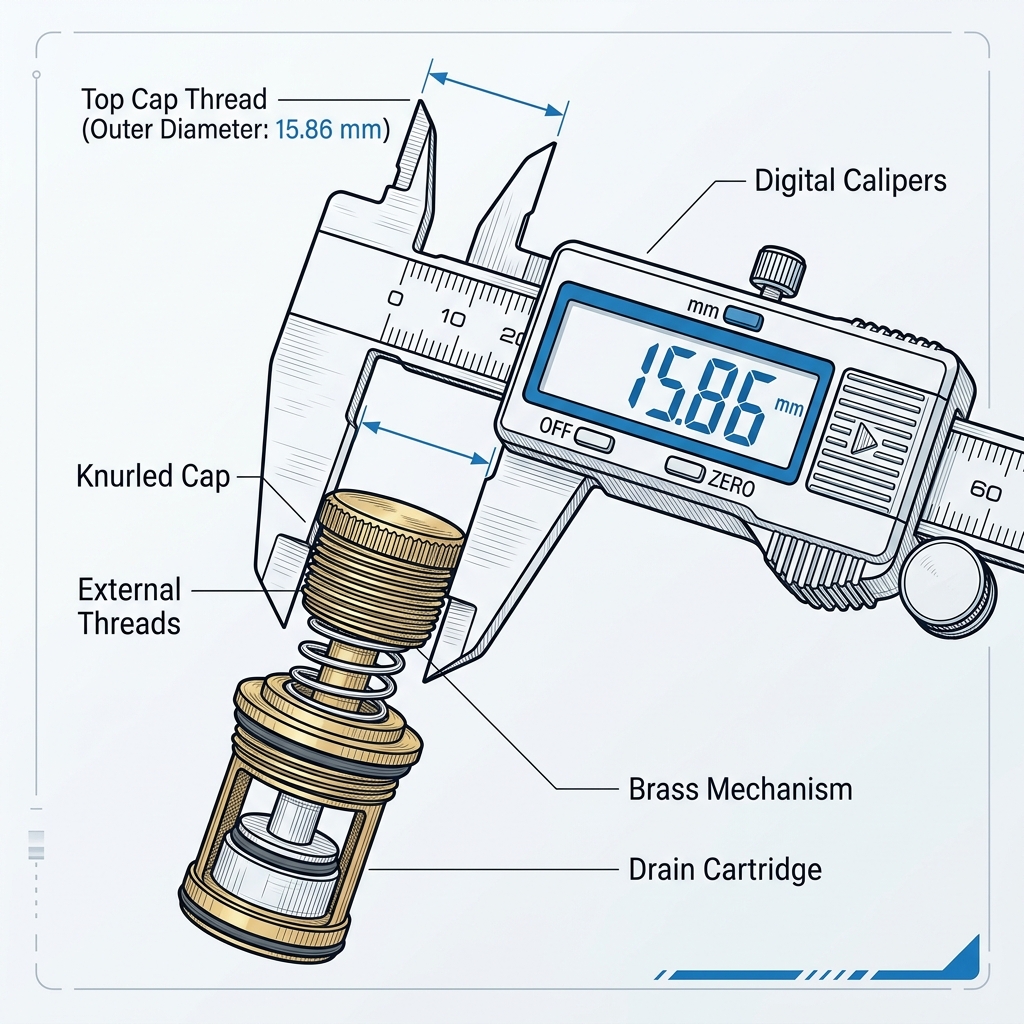

1. Top Cap Thread
Place the caliper jaws across the widest, outside peaks of the upper threads. Target: 15.86 mm to 16.0 mm (M16 thread pattern).

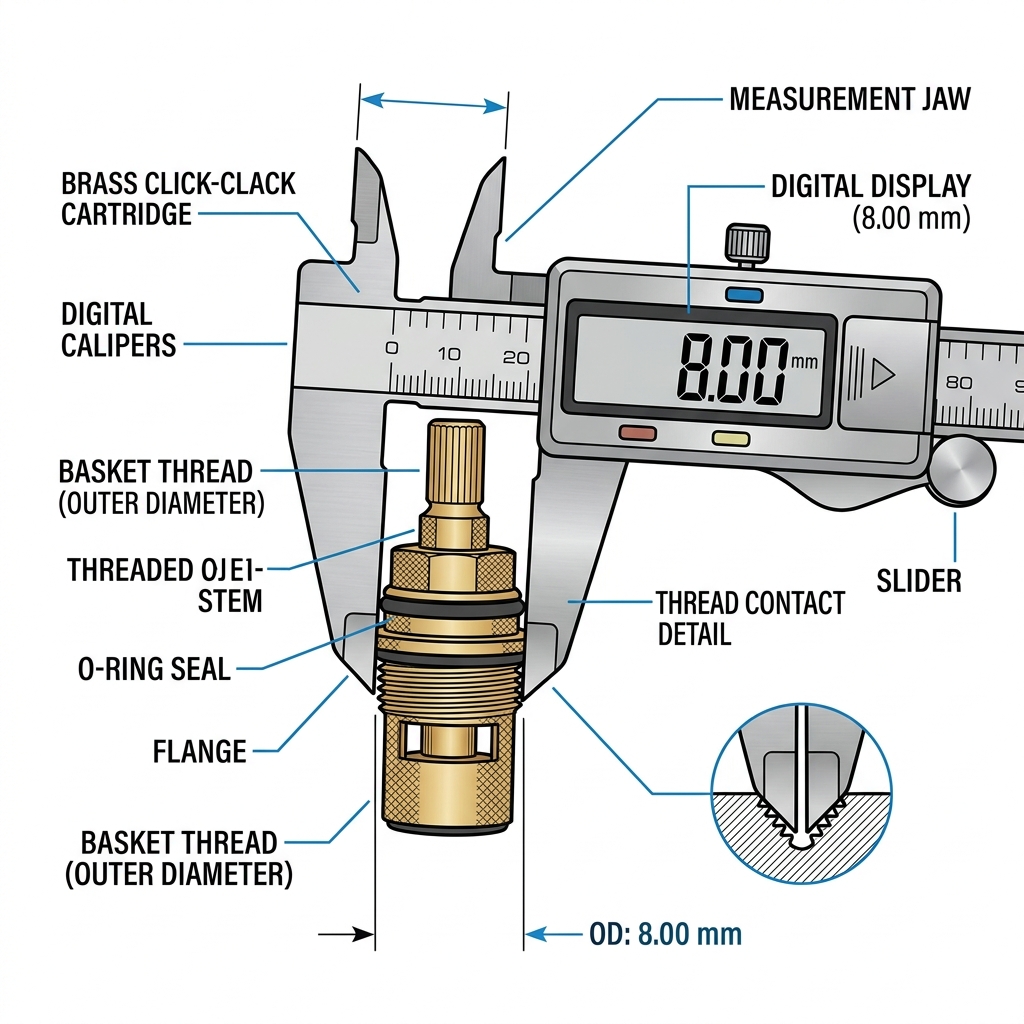

2. Bottom Basket Thread
Measure the outside width of the narrow thread at the very bottom tip of the bolt. Target: 8.0 mm to 8.25 mm (M8 thread pattern).

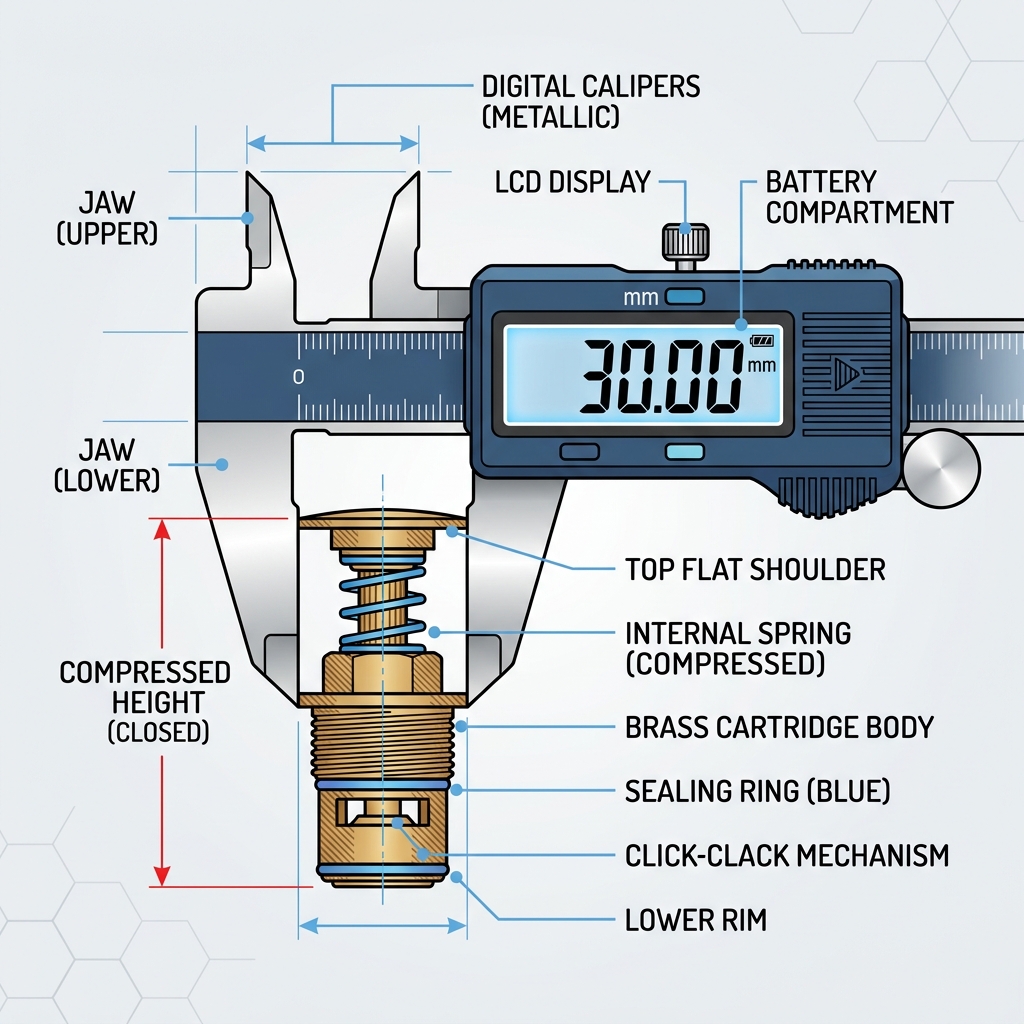

3. Closed Body Height
Push the mechanism down until it clicks closed. Measure the distance from the top flat shoulder to the bottom rim flange. Target: 28 mm to 35 mm.
Interactive Caliper Spec Validator
Verify your measurements before buying
Sourcing the Right Part
When shopping for a replacement pop-up bolt online, ignore any listings meant for "vessel sinks" or large kitchen strainers. You need a specific, compact modern bathtub variant.
GOTCHA #3: Beware the 55mm "Mega" Bolt!
Amazon search results are heavily flooded with an extra-long 55mm (2.17 inch) version of this exact bolt style. While it features the correct M16 and M8 thread diameters, it is physically too long for standard bathtubs. If you install this 55mm version, your stopper cap will stick up like a flagpole and will never close far enough to seal the tub water. Stick strictly to listings showing a 28mm–35mm closed height.
Installing the New Bolt
Once your new brass cartridge arrives, completing the job is the easiest part of the project:
- Clear the Drain Threads: Take an old toothbrush and scrub out any hair, gunk, or white calcium buildup from the center hole of your tub's drain basket.
- Thread the Bolt Base: Take the narrow M8 end of your new brass bolt and thread it clockwise into the center hole of the drain basket. Tighten it down firmly using pliers or a flathead wrench on the flat shoulder notches. Do not over-torque it to avoid stripping the brass.
- Test the Clicking Action: Before mounting the cap, press the top of the brass bolt down with your thumb. It should click down smoothly, lock, and then pop back up when pressed a second time.
- Mount the Decorative Cap: Thread your original decorative metal stopper cap clockwise onto the wide M16 top threads of the new bolt until it is snug.
Run the water, click the drain closed, and enjoy a perfectly repaired, leak-free bathtub!
Frequently Asked Questions & Troubleshooting
Can I just repair or lubricate the bolt I already have?
Realistically, no. These cartridges are factory-sealed; the brass outer housing is crimped shut over the internal steel spring. If the mechanism is just a little sluggish from hard water deposits, you can try soaking the bolt in white vinegar or CLR for an hour, then blasting it with WD-40 Multi-Use Product to loosen it up. However, if the internal spring or latch track is snapped or rusted out, a full replacement is your only permanent fix.
Why is my bathtub still leaking water out even with a new bolt?
The brass bolt only handles the mechanical "click" up and down. If water is slowly seeping out of your full tub, the culprit is the black rubber gasket directly underneath your decorative metal cap. Inspect it for cracks, dry rot, or hair. Replace the gasket if it is worn out.
What if the bolt thread spins but won't catch?
The threads inside your old tub drain basket might be stripped or filled with corrosion. Use a small wire brush or an M8 tap to clean out the basket's center hole before twisting the new bolt in.
What if my entire drain assembly is completely corroded?
If your decorative metal cap is rusted out, or if the internal bolt is permanently frozen into the cap, don't waste time fighting it. You can opt to replace the whole visible unit with a complete drop-in push-button tub drain trim kit, which includes a brand new cap, fresh rubber seals, and the internal M16 spring core pre-installed.
